Why Philippine Feed Mills Require Customized Animal Feed Production Lines
The Philippine animal feed industry differs significantly from markets in Europe or North America. Your production needs reflect local conditions, species preferences, and economic realities that generic equipment cannot address.
Species-Specific Pellet Requirements
A tilapia farm needs floating pellets between 2mm and 4mm diameter. Broiler chicken operations require 3mm crumbles initially, then 5mm pellets as birds mature. Native chicken varieties need different formulations entirely. Bangus fingerlings demand micro-pellets under 1.5mm.
Standard production lines cannot switch between these specifications easily. We design our animal feed pellet production line systems with quick-change die systems. You can produce morning batches for your fish ponds, then switch to poultry feed in the afternoon without extensive downtime.
Voltage and Climate Adaptation
Philippine electrical systems operate at 220V, 60Hz. Many imported machines require costly transformers or voltage converters. Our equipment arrives configured for your exact power specifications.
Tropical humidity affects feed storage and pellet quality. We incorporate moisture control features, corrosion-resistant materials, and ventilation systems designed for year-round tropical operation.
Capacity Scaling for Market Growth
Most Philippine feed operations start small and expand gradually. A 500kg-per-hour line might suffice initially, but within two years you may need 2 tons per hour.

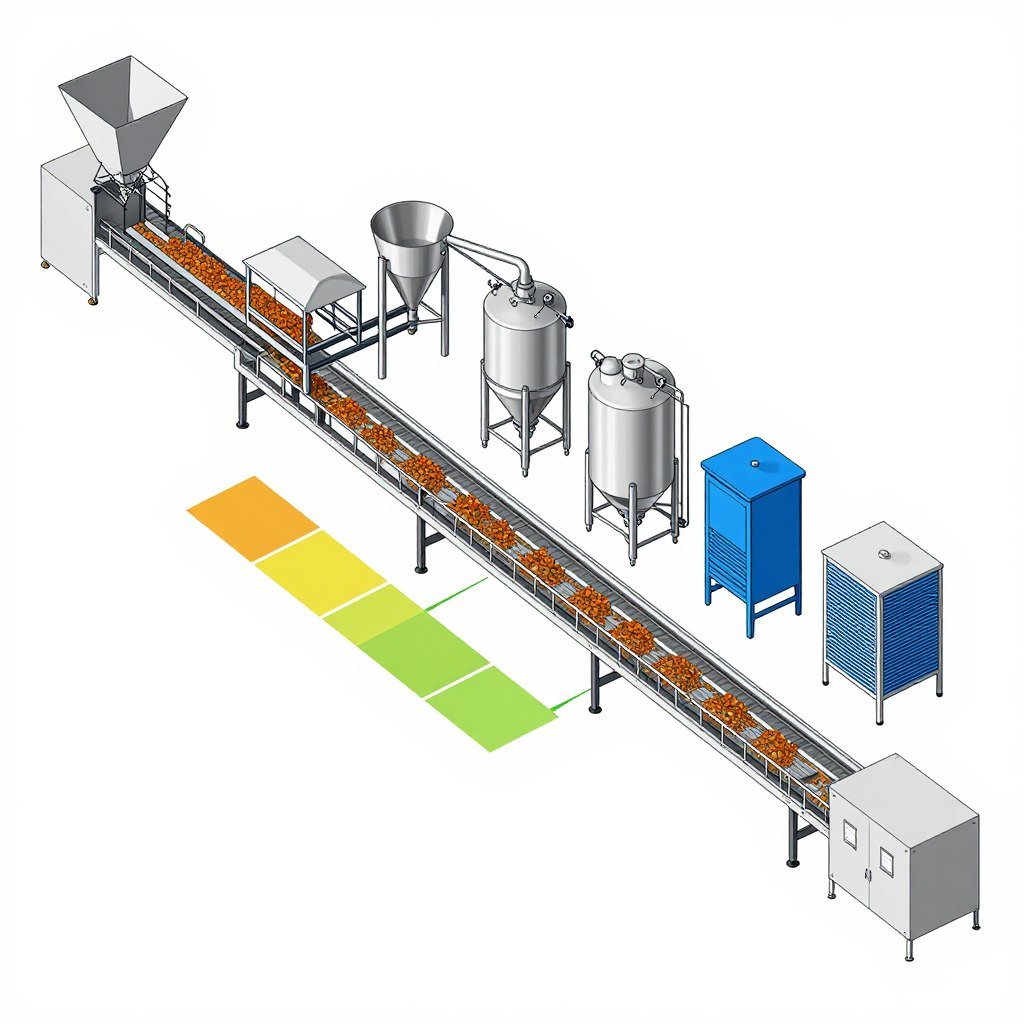

Our modular animal feed production line designs allow capacity increases without replacing entire systems. Add a second pellet mill, upgrade your mixer, or expand storage silos as your business grows.
Raw Material Flexibility
Philippine feed formulations often include copra meal, rice bran, fish meal from local sources, and imported ingredients like soybean meal. Each material has unique grinding, mixing, and pelleting characteristics.
Standard equipment struggles with high-fiber copra or oily fish meal. We engineer hammermills, mixers, and pellet dies specifically for the ingredient combinations you use. This prevents production bottlenecks and ensures consistent pellet quality.
MAIKONG’s Complete Animal Feed Production Line Customization Services
When you contact us at MAIKONG, you do not simply purchase equipment. You gain a manufacturing partner committed to your success. Our customization process ensures every component matches your specific requirements.
Detailed Needs Assessment
Our first step involves understanding your operation completely. We discuss your target species, production volumes, shift schedules, available space, budget constraints, and growth plans. Many clients email initial requirements to lucy@pelletmachine.ph, and we schedule detailed consultations from there.
We ask questions competitors do not consider. What is your local electricity cost per kilowatt-hour? This affects motor efficiency choices. Do you have three-phase power, or do you need single-phase motors? What is your building’s ceiling height? This determines elevator and silo configurations.
Custom Process Flow Design
Based on your needs assessment, we create a complete process flow diagram. This shows material movement from raw ingredient receiving through grinding, batching, mixing, pelleting, cooling, and packaging.
Small-Scale Operations (200kg – 1 ton/hour)
- Compact footprint designs for limited space
- Manual or semi-automated batching systems
- Single pellet mill configuration
- Simplified control panels
- Minimal staff requirements (2-3 operators)
Medium-Scale Operations (1 – 10 tons/hour)
- Automated ingredient dosing and weighing
- Multiple pellet mills or larger capacity units
- Computerized recipe management
- Quality control integration
- Batch tracking capabilities
Large-Scale Operations (10 – 200 tons/hour)
- Fully automated SCADA control systems
- Multiple production lines running parallel
- Advanced milling and conditioning systems
- Bulk handling and truck loading facilities
- Laboratory testing integration
Specialty Applications
- Floating fish feed with steam conditioning
- Sinking aqua pellets with high-density requirements
- Organic feed production with contamination prevention
- Medicated feed with precise micro-ingredient dosing
- Pet food with decorative shapes and coatings
Equipment Selection and Configuration
Every component in your animal feed pellet production line factory setup receives individual attention. We do not use one-size-fits-all approaches.
Hammer Mills: We select screen sizes and rotor speeds based on your specific ingredients. Processing copra requires different configurations than grinding corn. We can provide mills with screen-changing systems if you process varied materials.
Mixers: Batch or continuous? Ribbon or paddle design? Liquid addition capabilities? We match mixer type and size to your formulations and production rate. High-fat fish feeds need different mixing dynamics than poultry rations.
Pellet Mills: This is the heart of your animal feed production line pellet system. We offer ring die mills in various diameters (250mm to 800mm), with die specifications customized for your pellet sizes and formulations. Harder pellets for aquaculture require different compression than softer poultry feed.
| Production Capacity | Recommended Pellet Mill Model | Motor Power | Die Diameter | Suitable Applications |
| 200-500 kg/hour | MAIKONG-250 | 22 kW | 250mm | Small farms, startup operations |
| 500-1000 kg/hour | MAIKONG-320 | 37 kW | 320mm | Medium farms, small commercial mills |
| 1-2 tons/hour | MAIKONG-400 | 55 kW | 400mm | Commercial feed mills, aquaculture |
| 2-4 tons/hour | MAIKONG-508 | 90 kW | 508mm | Large commercial operations |
| 4-8 tons/hour | MAIKONG-678 | 160 kW | 678mm | Industrial feed production |
| 8-12 tons/hour | MAIKONG-800 | 220 kW | 800mm | Major feed manufacturers |
Cooling Systems: Tropical temperatures mean feed pellets exit the mill very hot. Our counterflow coolers are sized and configured to bring pellets to safe storage temperatures quickly, preventing mold growth and nutrient degradation.

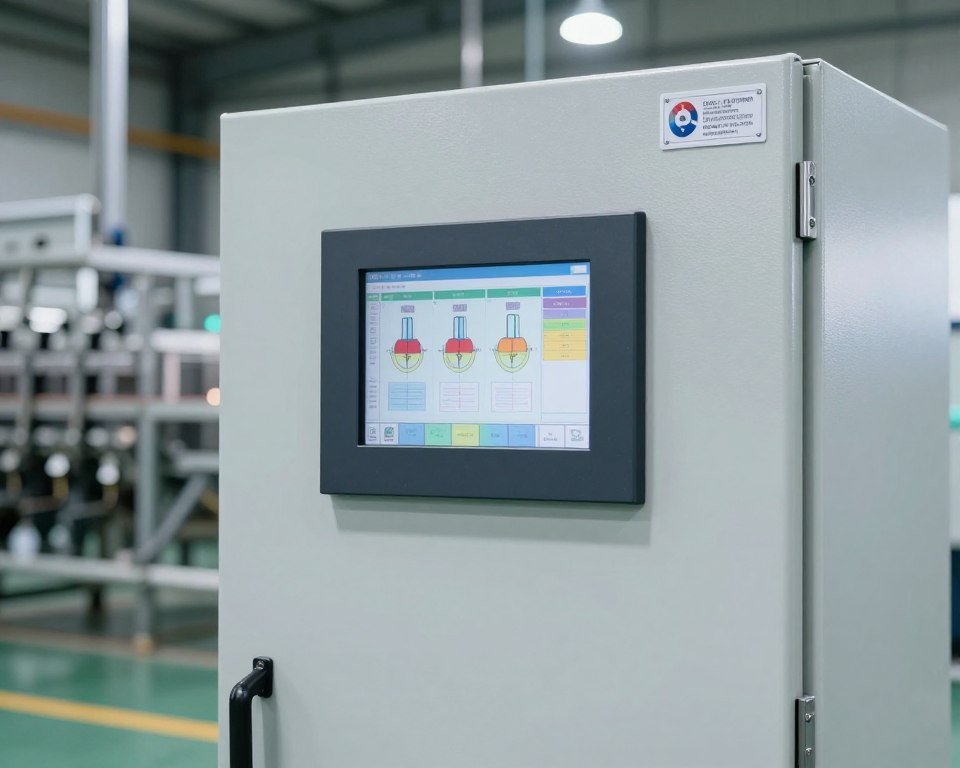

Electrical and Control System Customization
We design control systems matching your operational needs and staff technical capabilities. Options range from basic manual controls with individual motor starters to fully automated PLC systems with touchscreen interfaces.
For Philippine installations, we ensure all electrical components are rated for 220V operation, include appropriate overload protection, and meet local electrical codes. Motor selection considers your power supply stability. In areas with voltage fluctuations, we specify motors with wider voltage tolerance ranges.
Layout Planning and Space Optimization
Available building space often constrains feed mill design. We create 3D layouts showing equipment placement, material flow paths, maintenance access, and operator work areas.
Vertical space utilization is critical in many Philippine facilities where land costs are high but buildings can go upward. We design multi-level layouts using bucket elevators and gravity flow to minimize floor space while maintaining efficient operation.
Installation Support and Training

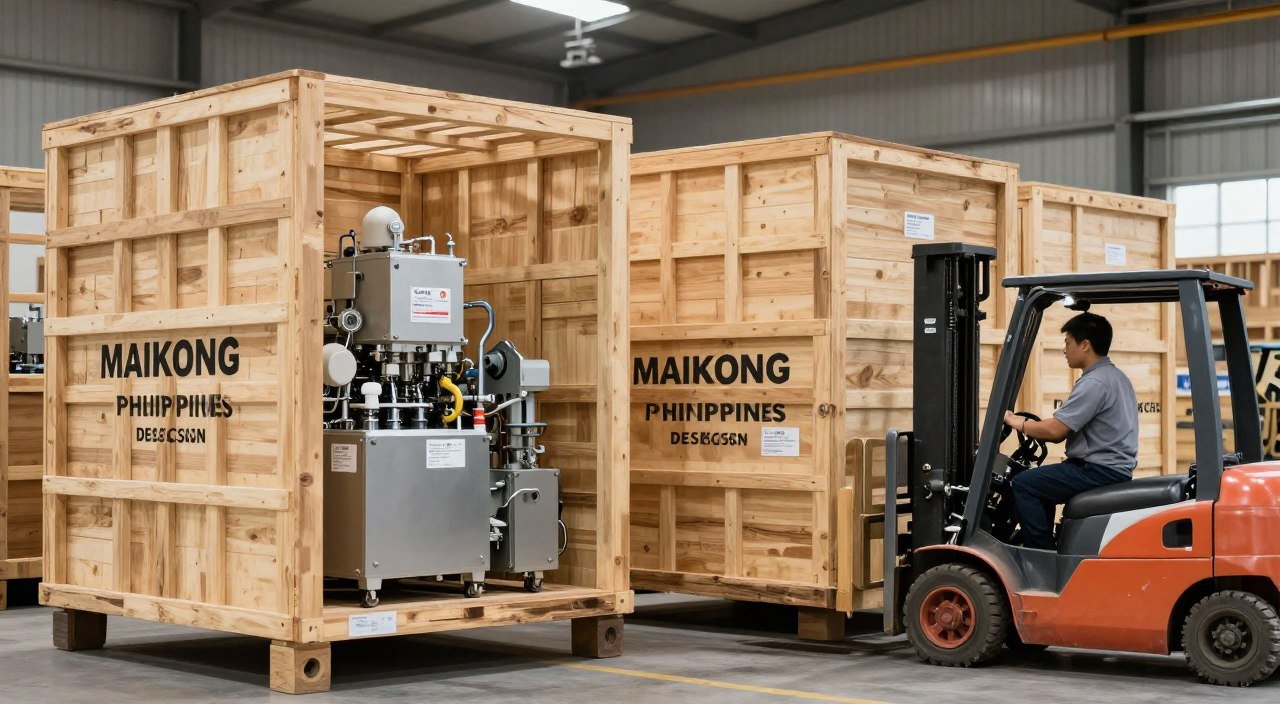

When your animal feed pellet production line arrives, our technical team provides complete installation guidance. We can send experienced technicians to your site, or provide detailed video instruction and remote support for local installation teams.
Training covers operation, maintenance, troubleshooting, and safety procedures. We ensure your staff can run the production line confidently and handle routine maintenance without depending on external support.
Many Philippine clients have told us this hands-on training made the difference between a struggling startup and smooth operations from day one. We typically spend one to two weeks on-site during commissioning, depending on system complexity.
Discuss Your Specific Customization Needs
Every operation is unique. Let’s talk about your raw materials, target species, production goals, and facility constraints. We will design an animal feed production line that fits your situation perfectly.
Ongoing Technical Support
Our relationship continues long after installation. We maintain stocks of common wear parts in our warehouse for fast shipping to the Philippines. Technical support is available via email at lucy@pelletmachine.ph or WhatsApp at 008613510907401.
When you encounter production issues, need to reformulate feeds, or want to expand capacity, we are here. Many clients have grown from small starter lines to multiple production facilities over the years, and we have supported their expansion every step.
MAIKONG Animal Feed Production Line Equipment and Technical Specifications
Understanding the technical capabilities of production line components helps you make informed decisions. Here we detail the core equipment that forms a complete animal feed pellet production line China manufacturers like MAIKONG provide.
Raw Material Receiving and Storage
Production begins with proper ingredient storage. We supply steel silos in capacities from 5 tons to 500 tons, configured for your specific raw materials and production schedule.
Bulk truck unloading systems can include pneumatic conveyors or mechanical elevators, selected based on your receiving frequency and ingredient types. We design receiving systems to minimize contamination and allow ingredient segregation.
| Component | Specification Range | Customization Options | Typical Applications |
| Steel Silos | 5-500 ton capacity | Height, diameter, number of compartments, discharge systems | Corn, soybean meal, rice bran, copra storage |
| Bucket Elevators | 5-100 ton/hour capacity | Lifting height, bucket size, speed control | Vertical material transport |
| Screw Conveyors | 1-50 ton/hour capacity | Length, diameter, screw pitch, material | Horizontal ingredient movement |
| Hammer Mills | 200 kg – 20 ton/hour | Screen size, rotor speed, motor power | Grinding grains and fibrous materials |
| Batch Mixers | 250 kg – 5 ton per batch | Mixing time, liquid addition, discharge method | Feed formulation blending |
| Pellet Mills | 200 kg – 12 ton/hour | Die specifications, conditioning system, power | Pellet formation for all feed types |
| Counterflow Coolers | 500 kg – 15 ton/hour | Cooling time, air volume, discharge method | Pellet temperature and moisture reduction |
| Crumblers | 1-10 ton/hour | Screen size, roller configuration | Breaking pellets to crumble size |
| Packaging Scales | 5-50 kg bags | Weighing accuracy, bag size, automation level | Final product bagging |
Grinding and Size Reduction
Our hammer mills are engineered for Philippine feed ingredients. The MAIKONG hammer mill series handles everything from hard corn kernels to fibrous copra meal.
Screen perforation sizes range from 1mm to 8mm, allowing you to produce different grinds for various animal species. Quick-change screen systems reduce changeover time between batches.
Batching and Mixing
Accurate ingredient proportioning ensures consistent feed quality. We offer both manual batching systems for smaller operations and fully automated computer-controlled systems for larger mills.
Our ribbon mixers achieve homogeneous blends in 3 to 6 minutes. Liquid addition systems can spray oils, molasses, or medications during mixing, with heating options for viscous liquids in tropical climates.
Pelleting Equipment
The pellet mill transforms mixed mash into durable pellets. Our ring die pellet mills feature:
- Stainless steel conditioning chambers for steam treatment
- Variable-speed feeders for consistent material flow
- Quick-release die systems for die changes
- Automatic lubrication systems
- Overload protection to prevent damage
- 220V motor configurations for Philippine power
Die specifications are customized for your pellet requirements. We manufacture dies with hole diameters from 1.5mm (micro-pellets for fish fry) up to 12mm (large livestock pellets), in various compression ratios optimized for your formulations.
| Animal Species | Recommended Pellet Size | Die Hole Diameter | Compression Ratio | Special Requirements |
| Tilapia Fingerlings | 1.5-2.0mm | 2.0mm | 1:12 | Floating, high stability |
| Tilapia Growers | 3.0-4.0mm | 4.0mm | 1:11 | Floating, 8-hour water stability |
| Bangus | 2.5-4.0mm | 3.5mm | 1:11 | Slow sinking |
| Shrimp | 1.5-2.5mm | 2.0mm | 1:13 | Sinking, 12-hour stability |
| Broiler Starter | 2.0-3.0mm crumbles | 4.0mm then crumbled | 1:9 | Softer texture |
| Broiler Grower | 4.0-5.0mm | 5.0mm | 1:9 | Medium hardness |
| Layer Hens | 3.0-4.0mm | 4.0mm | 1:9 | Calcium distribution |
| Native Chicken | 3.0-5.0mm | 4.5mm | 1:10 | Variable depending on age |
| Swine Starter | 3.0mm | 3.0mm | 1:10 | High digestibility |
| Swine Grower/Finisher | 5.0-6.0mm | 6.0mm | 1:10 | Harder pellets |
| Cattle | 6.0-8.0mm | 8.0mm | 1:8 | High fiber content |
| Goats | 5.0-6.0mm | 6.0mm | 1:9 | Medium density |
| Rabbits | 4.0-5.0mm | 5.0mm | 1:10 | High fiber, harder pellets |
| Pet Dogs | 6.0-10.0mm | 8.0mm | 1:11 | Flavor coating capability |
Cooling and Finishing
Pellets exit the mill at temperatures around 80-85°C with moisture content of 15-16%. Our counterflow coolers reduce temperature to within 5°C of ambient and moisture to 12-13%, ensuring safe storage.
Cooler capacity must match pellet mill output. We size cooling equipment conservatively for Philippine tropical conditions, where ambient temperatures can exceed 35°C.
After cooling, rotary screeners remove fines and oversized particles. Fines typically return to the mixer for re-pelleting, while on-size pellets proceed to packaging or bulk storage.
Automation and Control
Control system sophistication varies by operation size and customer preference. We offer:
Basic Control Package
- Individual motor starters with overload protection
- Manual process control and adjustment
- Simple operator interface
- Suitable for operations under 2 tons/hour
- Lower initial investment
- Easy operator training
Advanced Automation Package
- PLC control with touchscreen HMI
- Recipe storage and automatic batching
- Production monitoring and data logging
- Alarm systems and diagnostics
- Remote monitoring capabilities
- Optimal for operations over 5 tons/hour
Standard Equipment Package Inclusions
When you order an animal feed production line from MAIKONG, standard packages include:
| Package Component | Items Included | Specifications |
| Main Production Equipment | Hammer mill, mixer, pellet mill, cooler, screener, conveyors, elevators | As per capacity design |
| Electrical Components | Motors (220V, 60Hz), control panel, wiring, switches, safety devices | Philippine electrical standards |
| Spare Parts Kit | Hammers, screens, mixer paddles, pellet die, rollers, bearings, belts | 3-6 months operation |
| Installation Materials | Bolts, anchors, gaskets, lubricants, sealants | Complete installation kit |
| Documentation | Operation manuals, maintenance guides, electrical schematics, parts lists | English language |
| Training Materials | Video tutorials, troubleshooting guides, maintenance schedules | Digital and printed formats |
| Quality Certificates | CE certification, ISO 9001, material test reports | International standards compliance |
Request Detailed Technical Specifications
Need complete spec sheets, performance data, or electrical requirements? We will send comprehensive documentation for equipment matching your production needs.
Become MAIKONG’s Exclusive Philippine Distribution Partner
We are actively seeking qualified distributors and agents throughout the Philippines. As the animal feed industry continues growing rapidly across Luzon, Visayas, and Mindanao, we need local partners who understand regional markets and can provide exceptional customer service.
Why Partner With MAIKONG?
Becoming a MAIKONG distributor offers substantial business advantages. You represent a manufacturer with proven technology, competitive pricing, and strong support infrastructure.
Distributor Benefits
- Exclusive territory rights in your region
- Competitive wholesale pricing with attractive margins
- Full technical training at our Shenzhen facility
- Marketing materials and sales support
- Direct factory warranty support
- Priority spare parts availability
- New product introduction opportunities
- Joint customer visits and demonstrations
Ideal Partner Profile
We seek partners with:
- Experience in agricultural equipment, feed milling, or related industries
- Established customer network among farms, feed mills, or agricultural businesses
- Technical capability to support equipment installation and service
- Financial stability to maintain inventory and demonstration equipment
- Commitment to long-term business relationships
- Warehouse and service facilities in their territory
Support We Provide
MAIKONG invests heavily in distributor success. When you join our network, you receive:
Initial Training: We bring new distributors to our Shenzhen, GD facility for one week comprehensive training covering product technology, installation procedures, troubleshooting, sales techniques, and customer support.
Technical Assistance: Our engineering team remains available for complex technical questions, custom application design, and problem-solving. We respond to partner inquiries within 24 hours.
Marketing Support: We provide catalogs, technical brochures, specification sheets, case studies, and digital marketing materials you can customize with your contact information.

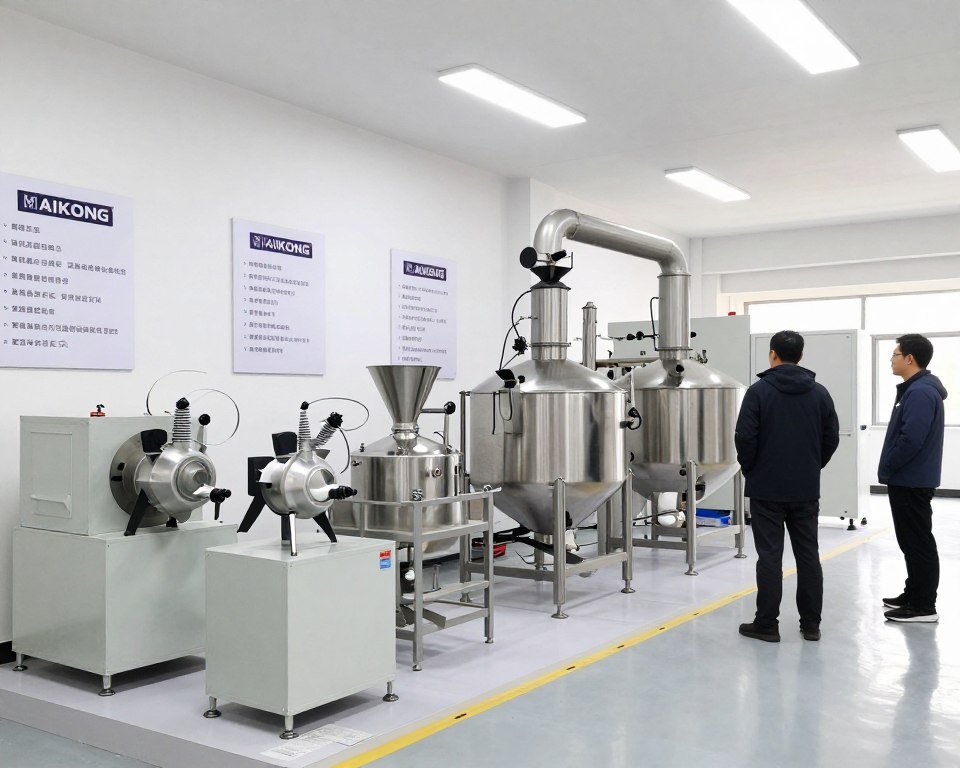

Demonstration Equipment: Qualified distributors can obtain demonstration units at special pricing to showcase capabilities to prospective customers.
After-Sales Support: We maintain spare parts inventory and provide warranty support, allowing you to serve customers effectively without carrying extensive parts stock initially.
Market Opportunities in the Philippines
The Philippine animal feed market continues expanding. Government support for agriculture, growing protein consumption, and increasing commercialization of farming create strong demand for feed processing equipment.
Key growth sectors include:
Aquaculture
The Philippines ranks among the world’s top fish producers. Tilapia, bangus, and shrimp farming operations increasingly adopt commercial feed production for better control over feed quality and costs.
Poultry
Chicken and egg consumption rises consistently. Medium-scale integrators and independent farmers seek feed production capability to reduce dependence on commercial feed suppliers.
Swine
Despite periodic challenges, swine production remains vital. Biosecurity concerns drive on-farm feed production, creating equipment demand.
Getting Started
If you are interested in exploring a distribution partnership with MAIKONG for animal feed production line equipment in the Philippines, we invite you to reach out. The process begins with a conversation about your background, market area, and business goals.
We will discuss territory availability, commercial terms, and support programs. Qualified candidates will receive a formal distributor proposal outlining all program details.
Apply to Become a MAIKONG Distributor
Join a growing network of successful partners across Southeast Asia. Build a profitable business representing quality feed production equipment with strong factory support. Limited territories remain available.
Your Success Is Our Priority
At MAIKONG, we measure our success by your success. When your animal feed production line operates efficiently, produces quality pellets, and helps your business grow, we have fulfilled our purpose.
Whether you are a startup poultry farmer planning your first small production line, an established feed mill expanding capacity, or an entrepreneur seeking to enter the feed manufacturing business, we have solutions that fit your needs and budget.
Our approach is straightforward. We listen to your requirements, design appropriate solutions, manufacture quality equipment, provide thorough support, and maintain long-term relationships. This is how we have built our reputation across more than 130 countries.
The Philippine market holds special importance for us. Your tropical climate, diverse aquaculture and livestock industries, and growing demand for quality feed create ideal conditions for our customized production line solutions.
We invite you to contact us today. Whether you need a complete production line design, want to discuss specific equipment, or are interested in becoming a distribution partner, we are ready to help. Reach us by email at lucy@pelletmachine.ph, call or message via WhatsApp at 008613510907401, or visit our contact page at https://pelletmachine.ph/contact.
Let us work together to build your feed production success story.
